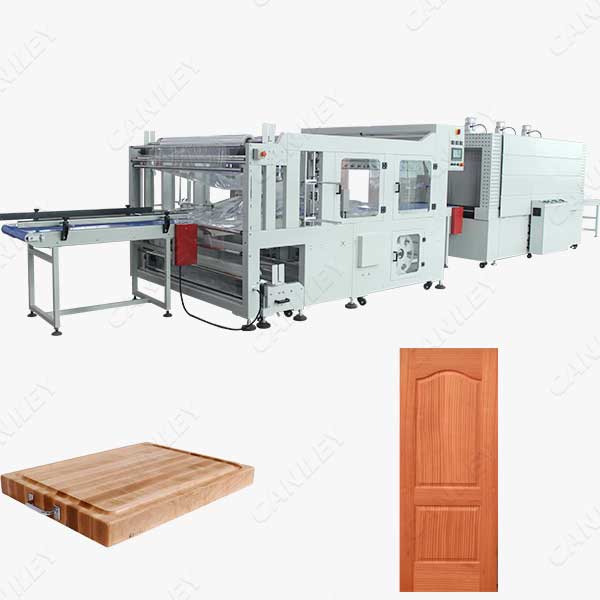

The automatic door shrink wrap machine can be used for large boxes, door, window, chopping board, picture frame and other big size products.
Window Shrink Wrap Machine Features:
- Hot air circulation design, upper fan installation method, shrink packaging more evenly.
- The door shrink wrap machine using 3 fans + heat preservation and shrinking, the shrinking effect is better, and the shrinking packaging speed is faster.
- The solid roller + high temperature resistant silicone tube roller conveyor is reliable and durable.
- The window shrink wrap machine uses frequency conversion speed regulator, the conveying speed is steplessly adjustable.
- At the end of the shrinking tunnel, a cooling fan is used to cool the product to achieve rapid shaping of the sealing shrinkage and protect the product.
- The 100mm thick thermal insulation layer has good thermal insulation effect, effectively reducing heat loss and saving electricity.
- The chopping board shrink wrapping machine uses PID digital display temperature control, independent temperature control, heating temperature deviation ±1 degree, temperature control is more stable, heating to set temperature, automatic heat preservation hot air circulation, high efficiency and energy saving.
- The automatic shutdown function will automatically cut off the power when the equipment is cooled to 70°C, saving waiting time for cooling and extending the service life of the door shrink wrap machine.
- The electrical components adopt well-known brands, and the use of raw materials and surface treatment ensure quality and quantity to ensure the quality.
Model | APT-10070PE-II |
Shrink tunnel size | W2700*W1000*H700mm |
Maximum conveying speed | 20M/min |
Machine size | L3260*W1662*H2088mm |
Max packing size | L3400*W1800*H2250mm |
Weight | 1450/2150kg |
Power | 380/220V 3PH 50/60HZ 50KW |
