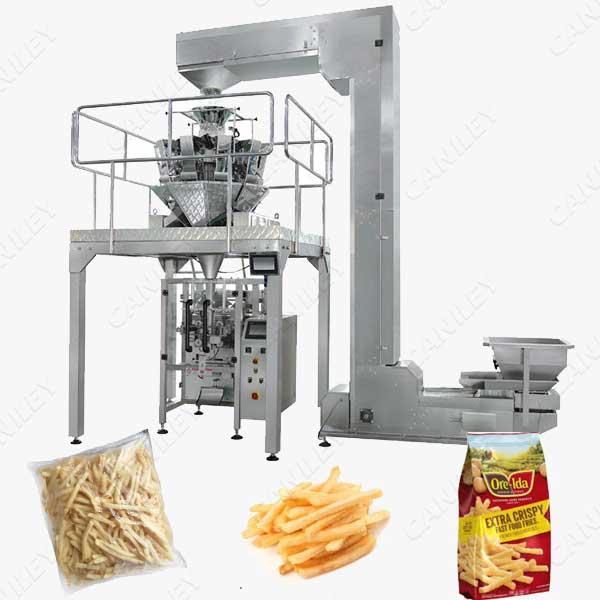

Multihead Frozen French Fries Packaging Machine

wide packaging range, more accurate measurement, more types of bags

Scope of Application:

This frozen french fries packaging machine is suitable for french fries, frozen french fries, candies, melon seeds, nuts, and other snack foods, pet foods, puffed foods, etc.

French Fries Packing Machine Working Principle:

The principle of combined weighing is adopted. It is composed of multiple weighing units with independent feeding and discharging structure. The computer uses the principle of permutation and combination to automatically and optimally calculate the load of the weighing unit to obtain the best weight combination closest to the target weight value for packaging.

French Fries Weighing And Packing System Features:

  • Weighing hopper independent control mode, high-speed and accurate calculation, increased by 10% compared with standard scales.
  • The touch screen debugging function is adopted to make the weighing and packaging process more accurate.
  • The frozen french fries packaging machine with counting function to meet diversified weighing.

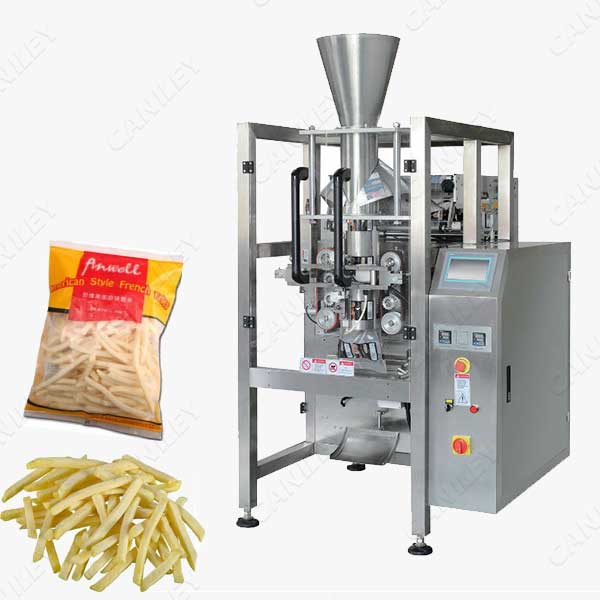

french fries packing machine manufacturer

  • Automatically pauses when there is no material, making weighing more stable.
  • The amplitude of each line can be adjusted freely during operation, which can make the feeding more uniform.
  • The french fries packing machine can be applied to all kinds of composite films, single-layer PE films and paper films.

Packing Bag Type:

Three sides seal, four sides seal, flat bag, pillow type bag, gusseted bag, 4 vertical welders bag, hanging hole bag, etc.

types of packing bag

Model CK-420AZ
Air consumption 2.5m3/min.6kg/cm2
Max. Film width Max.420mm
Bag length 80-300mm
Bag width 80-200mm
Max. film roll diameter Max.360mm
Packaging speed 5-60bags/min
Packing thickness 0.04-0.08mm
Power supply specification 220V.50/60Hz.2.4KVA
Dimension (L)1100x(W)925x(H)1620mm
Packing machine weight 850kg
